Ram Mount Ram Double Ball Mount W/1/4″-20 Male Thread – Short Arm

Ram Mount Ram Double Ball Mount W/1/4″-20 Male Thread – Short Arm

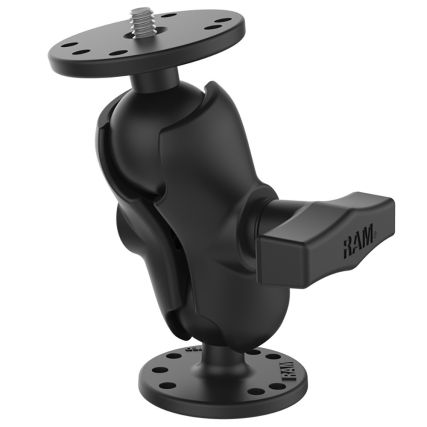

RAM® Double Ball Mount with 1/4″-20 Male Thread – Short Arm

The RAM-B-101AU consists of a double socket arm, one 2.5″ diameter round base with the universal AMPS hole pattern and universal camera/camcorder base. The universal camera/camcorder base consists of a 1″ diameter rubber ball connected to a 2.5″ diameter round base with 1/4-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

Hole Pattern:

• 4-Hole AMPS: 1.181″ x 1.496″
• 3-Hole 120-Degree: 1.812″ Diameter

Features:

• Ball/Socket Size: B Size – 1″
• Materials: Marine-grade aluminum
• Plate Size: 2.5″ Diameter
• Socket to Socket Length: 3″
• Product Dimensions: Overall Height: 5″

Manufacturer Part Number: RAM-101AU-B
