Ram Mount Quick-Grip 15w Waterproof Wireless Charging Handlebar Mount

Ram Mount Quick-Grip 15w Waterproof Wireless Charging Handlebar Mount

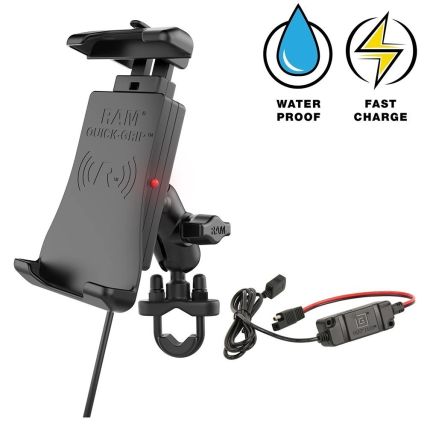

Quick-Grip™ 15W Waterproof Wireless Charging Handlebar Mount

The RAM® Quick-Grip™ Wireless is a patented, universal, waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging.

Both the top and bottom cups feature rubber to help hold a phone firmly in place. To insert your device, use your phone to push the top cup upward, and then gently place your device against the cradle for a secure fit. This Qi-compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.

This RAM® Quick-Grip™ Wireless handlebar kit includes a B-size diamond base featuring a 1″ rubber ball, a short double socket arm, and a zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5″ to 1.25″ in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwired charger.

Features:

• The waterproof Qi-compatible wireless phone charging cradle features a spring-loaded RAM® Quick-Grip™ design and 15W maximum output
• Kit includes a wireless charging cradle, B-size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• RAM® Mounts are backed by a lifetime warranty and RAM® electronics are backed by a 1-year warranty with proof of purchase required

Specifications:

• Hardware Included: (1) Safety Tether, (1) Silicon sleeve for USB waterproof connection, (1) Hardwire Charger with Cable, (4) Small zip ties, (4) Large zip ties, (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails, (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails, (2) 1/4″-20 Nylock Nuts, (2) Rubber Caps, and (1) U-Bolt Spacer
• Holder Dimensions (inch): Height Range: 5.625″ – 6.625″, Max Width: 3.125″, Max Depth: .7″
• Clamp Range (inch): .5″ – 1.25″ diameter
• Socket-to-Socket Length (inch): 1.75″
• Ball Size (inch): B Size (1″)
• Weight Capacity: Standard Use: 2 lbs / Heavy-Duty Use: 1 lbs
• Materials: Marine-grade aluminum, high-strength composite, and stainless steel
• Weight: 1.87 lb.

Power Specifications:

• Input Power: 5V-2A; 9V-1.67A
• Output: 15W
• Conversion Efficiency: 85% Max
• Maximum Case Thickness: 6mm
• Working Frequency: 110-205KHZ
• Product Standard: WPC v.1.2.4
• Qi Compatible: Yes
• Compatible with QC2.0/QC3.0 power supplies
• Input Connector: USB Type-A Male
• Input Cable Length: 20″ with optional 1.2M extension cable
• Operating Temperature: 0°C to +37.7°C
• Compliance: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), and Moisture Resistant
• Certifications: CE Certification, KC, e-Mark Certification, RCM Certification, and FCC Certification
• Warranty: 1 year

Compatible Devices:

• Apple: iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, and iPhone Xs Max
• Blackberry: Evolve X
• Blackview: BV9900 and BV9900 Pro
• Google: Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, and Pixel 7 Pro
• Huawei: Mate 20 Pro and P30 Pro
• LG: G6, G6+, G7 ThinQ, G8 ThinQ, G8S ThinQ, V30, V35 ThinQ, V40 ThinQ, and V50 ThinQ
• Nokia: 8 Sirocco and 9 PureView
• Razer: Phone 2
• Samsung: Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 5, Galaxy Note 8, Galaxy Note 9, Galaxy S10, Galaxy S10 5G, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21+ 5G, Galaxy S21 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S22 Ultra 5G, Galaxy S23, Galaxy S23+, Galaxy S23 Ultra, Galaxy S6, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8, Galaxy S8+, Galaxy S8 Active, Galaxy S9, and Galaxy S9+
• Sony: Xperia XZ2, Xperia XZ2 Compact, and Xperia XZ3
• Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, and Mi Mix 3
• ZTE: Axon 9 Pro, Axon 10 Pro

Manufacturer Part Number: RAM-B-149Z-A-UN14W-V7M-1
