Ram Mount Horizontal 6″ Swing Arm Mount W/Ball

Ram Mount Horizontal 6″ Swing Arm Mount W/Ball

Horizontal 6″ Swing Arm Mount with Ball

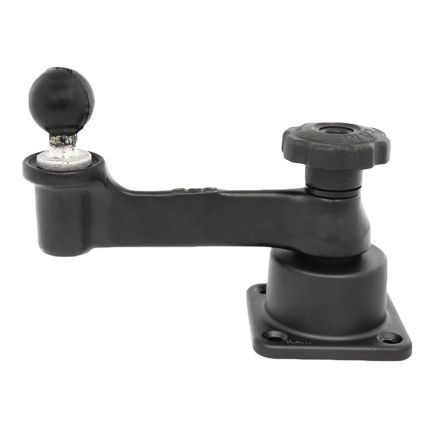

The RAM-109H-2BU consists of a 6″ long STRAIGHT swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a round 1.5″ diameter ball. The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.

Specifications:

• Material: Powder Coated Marine Grade Aluminum
• Ball Size: C Size 1.5″ Rubber Ball
• Note: The “U” in the part number reflects product packaged in poly bag.
• Weight: 1.67 lbs.

Manufacturer Part Number: RAM-109H-2BU
