Ram Mount Heavy Duty Marine Electronics Mount W/Pin-Lock Security Kit Short Arm

Ram Mount Heavy Duty Marine Electronics Mount W/Pin-Lock Security Kit Short Arm

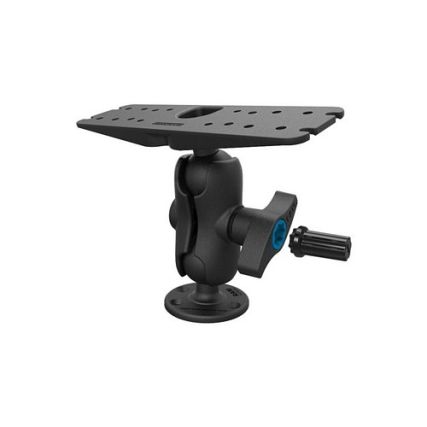

RAM Pin-Lock™ Security Kit and 2.25″ Diameter Ball SHORT Mount with 11″ X 3″ Rectangle Plate

The RAM-S-D-111U-C consists of a 3.68″ diameter round base, SHORT LENGTH double socket arm, 11″ x 3″ rectangular base, RAM mixed combination Pin-Lock™ security nut and key knob. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

RAM® Pin-Lock™ security solutions are designed to withstand the harshest environments where RAM® Mounts are commonly used. With an emphasis on aesthetics and function, RAM® security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.

Features

Overall Height:
8.125″

Weight Capacity:
Up to 15 lbs

Material:
Powder Coated Marine Grade Aluminum and High Strength Composite

Ball Size:
2.25″ Rubber “D” Ball Size

Note:
The 11″ x 3″ rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Manufacturer Part Number: RAM-S-D-111U-C
