Ram Mount Heavy Duty Marine Electronics Mount W/Combination Pin-Lock Security Kit Short Arm

Ram Mount Heavy Duty Marine Electronics Mount W/Combination Pin-Lock Security Kit Short Arm

RAM Mixed Combination Pin-Lock™ Security Kit and 2.25″ Diameter D Size Mount for Gimbal Brackets

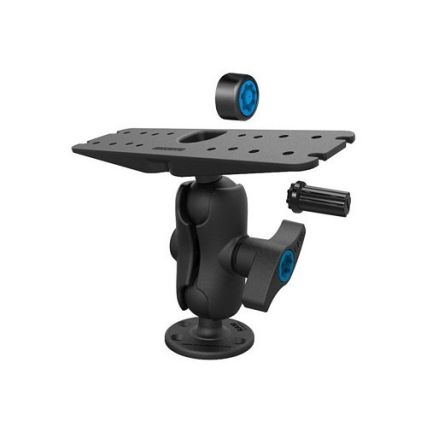

The RAM-SG-D-111U-C consists of a 3.68″ diameter round base, SHORT LENGTH double socket arm, 11″ x 3″ rectangular base, RAM mixed combination Pin-Lock™ security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.

RAM® Pin-Lock™ security solutions are designed to withstand the harshest environments where RAM® Mounts are commonly used. With an emphasis on aesthetics and function, RAM® security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price. The included threaded key knob replaces the gimbal knob, assuring your mounted electronic device is safe from theft and tampering.

Features:
Overall Height:
8.125″

Weight Capacity:
Up to 15 lbs.

Material:
Powder Coated Marine Grade Aluminum and High Strength Composite

Ball Size:
2.25″ Rubber “D” Ball Size

Note:
The 11″ x 3″ rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Manufacturer Part Number: RAM-SG-D-111U-C
