Ram Mount Handlebar Rail Mount W/Zinc Coated U-Bolt Base & Universal X-Grip Cradle For 10″ Large Tablets

Ram Mount Handlebar Rail Mount W/Zinc Coated U-Bolt Base & Universal X-Grip Cradle For 10″ Large Tablets

Handlebar Rail Mount with Zinc Coated U-Bolt Base and Universal X-Grip® Cradle for 10″ Large Tablets

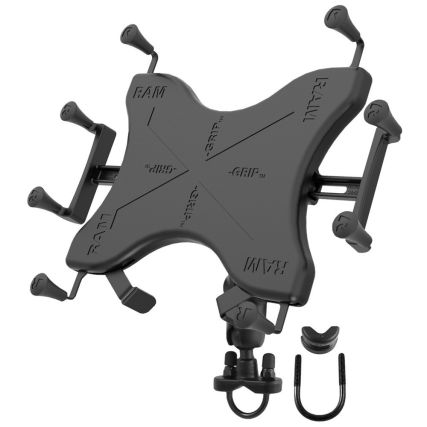

The RAM-B-149Z-UN9U consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 10″ tablets. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 10″ tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.

X-Grip® Dimensions:

• Minimum Width = 6.25″
• Maximum Width = 8.1″
• Depth = 0.875″
• Maximum Length (using additional supports) = 10.25″

U-Bolt Dimensions:

• 0.50″ to 1.25″

X-Grip® Features:

• Spring loaded cradle expands and contracts for perfect fit of your tablet
• Rubber coated tips will hold your tablet firm and stable
• Socket technology allows for multiple adjustment angles and articulation of your tablet
• Easy access grip knobs, located on the back of the cradle for quick release of your tablet
• Multiple mounting access points on the back of the cradle
• Additional support keeper at the bottom of the cradle
• Full access to all ports
• Lifetime warranty

Material:

Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

Note:

The “U” in the part number reflects product packaged in poly bag.

Manufacturer Part Number: RAM-B-149Z-UN9U
