Drill-Down Dashboard Mount with Backing Plate – C Size Medium

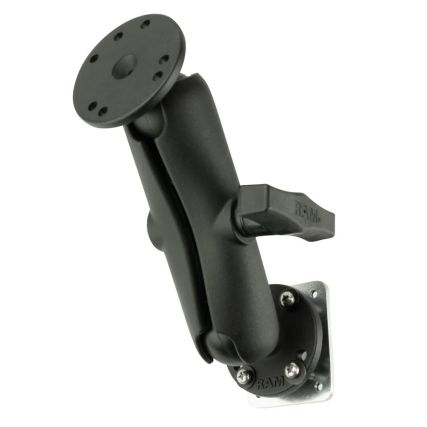

Meet the new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. The RAM-101-225B2U consists of a C-size medium-length double socket arm, two round 2.5″ diameter round bases with the universal AMPS hole pattern, and one 2.10″ x 2.60″ steel backing plate (hardware included).

RAM®’s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling the perfect viewing and operating angle of your device.

Features:

• Drill-down double ball mount with a 2.10 x 2.60 in. steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
• Includes a C-size 1.5 in. RAM® rubber ball and a medium-length double socket arm; ball and socket technology allows for near-infinite adjustability
• Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

• Hardware Included: (1) 2.10″ x 2.60″ Steel Backing Plate, (4) #8-32 x 1″ Machine Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
• Product Dimensions (inch): Overall Height: 7.35″
• Socket to Socket Length (inch): 4.66”
• Hole Pattern: Round Plate:, 4-Hole AMPS: 1.181″ x 1.496″, 3-Hole 120-Degree: 1.812″ Diameter
• Ball Size (inch): C size (1.5”)
• Weight Capacity: The standard use is 4 lbs. and the heavy-duty use is 3 lbs.
• Materials: Marine-grade aluminum and steel
• Weight: 1.4 lb.

Manufacturer Part Number: RAM-101-225B2U
