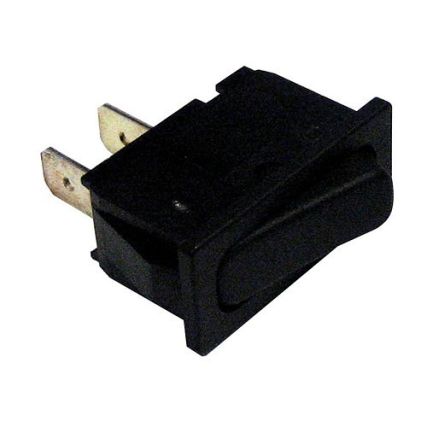

Paneltronics Spst On/Off Rocker Switch

Paneltronics Spst On/Off Rocker Switch

Rocker Switch

• UL Recognized and CSA Certified
• Single Pole Non-Illuminated
• Snap-in Mounting
• Replacement Switches for Paneltronics’ Deluxe and Premier Panels

Specifications:

• Maximum Contact Rating: 6 Amps @ 125VAC or 4 Amps @ 250VAC
• Contacts: Silver Plated Copper
• Terminals: Silver Plated Copper 1/4″ (6.3mm) Quick Connects
• Operating Temperature: -4 deg. F (-20 deg. C) to 131 deg. F (55 deg. C)
• Housing and Actuator: Black Thermoplastic
• Flammability Rating: UL 94 V-2
• Rated IEC 60529: IP40
• Panel Thickness: 1/8″ (3.18 mm)
• Recommended Panel Cut-Out: 1.188″ (30.18 mm) x 0.468″ (11.89mm)

  Manufacturer Part Number: 001-251
