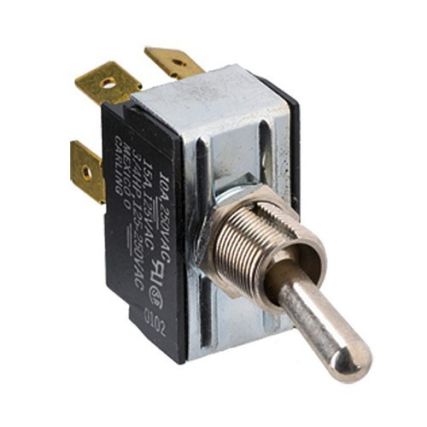

Paneltronics Dpdt (On)/Off/(On) Metal Bat Toggle Switch – Momentary Configuration

Paneltronics Dpdt (On)/Off/(On) Metal Bat Toggle Switch – Momentary Configuration

Metal Bat Handle Toggle Switches

• Single or Double pole, and maintaining or momentary configurations are available
• Rated at 10A 250VAC, 15A 125VAC, and 15A 30VDC (ABYC E-11.14.1.1)
• AC units are UL recognized for use in the USA and CSA Certified for use in Canada
• Optional silicone rubber boots provide a watertight panel seal
• 1/4″ male tab terminals are standard
• Hole plugs 1/2″ diameter Black (P/N 016-004) and White (P/N 016-020)

  Manufacturer Part Number: 001-014
