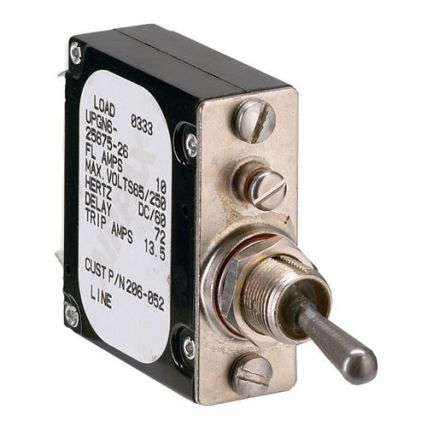

Paneltronics Breaker 25 Amps A-Frame Magnetic Waterproof

Paneltronics Breaker 25 Amps A-Frame Magnetic Waterproof

Panel Seal / Waterproof “A” Frame Magnetic Circuit Breakers

Branch AC or DC circuit breaker for Paneltronics electrical distribution panels

Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers

UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada

Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)

Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)
Specifications

• Handle Color: Metal with Silicon rubber seal
• Maximum Amperage: 50 Amps
• Maximum Voltage/AIC: 32 VDC/ 2,500 Amps with no Back-up Fuse (ABYC E-11.10.1.5.5)
• Rated Switch Cycles: Rated Switch Cycles 10,000 actuations at rated current and voltage
• Electrical Hardware: Screw 10-32 x 3/8″ pan combo head (P/N 197-188)
• Mounting Hardware: Hex nut 1/2-32 (supplied with circuit breaker), Lockwasher 1/2″ internal tooth (supplied with circuit breaker)
• Optional Boot Black silicone rubber (P/N 048-015)

  Manufacturer Part Number: 206-055S
