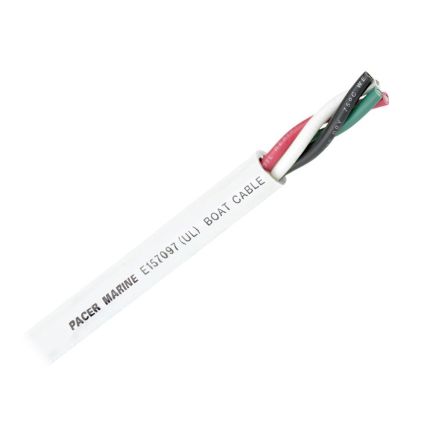

Pacer Round 4 Conductor Cable – 100′ – 10/4 Awg – Black, Green, Red & White

Pacer Round 4 Conductor Cable – 100′ – 10/4 Awg – Black, Green, Red & White

Round 4 Conductor Cable – 100′ – 10/4 AWG – Black, Green, Red & White

Round boat cable is perfect for installation in tight or confined spaces like boat hulls. One thing that makes round boat cable the perfect choice is the fact that it can bend in any direction. With other, more flat cables, your range of motion is severely limited. Pacer’s 10 AWG round boat cable is UL approved. All Pacer round boat cable is manufactured in Sarasota FL, USA. Its tinned copper conductors provide superior resistance to corrosion. This round boat cable is the ideal choice for multiconductor boat cable and is easy to install for many reasons. For one, it’s made from Type III finely-stranded conductors. Next, it carries high-quality flexible PVC insulation. Finally, this boat cable has an overall round shape making it ideal for even the most cramped of spaces. These things combine to make this multiconductor boat cable the easiest to install. Bending in any direction with its extreme flexibility, it also handles the frequent vibration and flex of the marine environment.

Features:

• 10 AWG round boat cable
• 100 ft. of cable
• No. of Conductors: 4
• Pacer’s boat cable is the perfect choice for many marine jobs
• It’s ideal for running through sailing spars, poling platforms, and t-tops
• Also, it is the perfect choice for small hulls or other tight areas
• Type III, stranded, tinned copper conductors
• Highly flexible
• Easy to install and organize
• Easily sealed through bulkheads

Specifications:

• Conductor Colors: Black, green, red, white
• Conductor Stranding: 105/.0100
• Jacket Color: Grey
• Jacket Thickness (inch): 4 conductors @ 0.045″
• Nom. Cable O.D. (inch): 4 conductors @ 0.600″

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper
• ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600 V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Pacer’s round boat cable is excellent for AC and DC internal wiring of boats and recreational vehicles

Compliances:

• UL Standard 1426 (BC-5W2)
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183
• RoHS Compliant

Manufacturer Part Number: WR10/4-100
