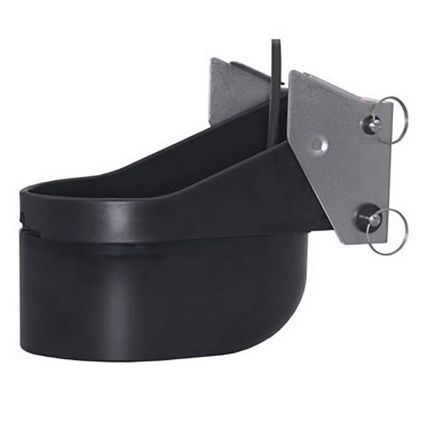

xSonic TM275LH-W TM CHIRP Transducer Wide Angle

The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25x beam width for the best resolution and coverage in the upper water column and in shallower depths.

Features:

• 42-65 kHz Low CHIRP with 25-16x beam width
• 150-250 kHz High CHIRP with wide 25° beam for excellent fish targets
• Up to 1200 m (4000 ft) range with Low CHIRP
• 8 internal broadband ceramics
• Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets)
• Suitable for fiberglass, wood and metal hulls
• Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
• Recommended for use with the BSM-3 broadband sounder module

Manufacturer Part Number: 000-13770-001
