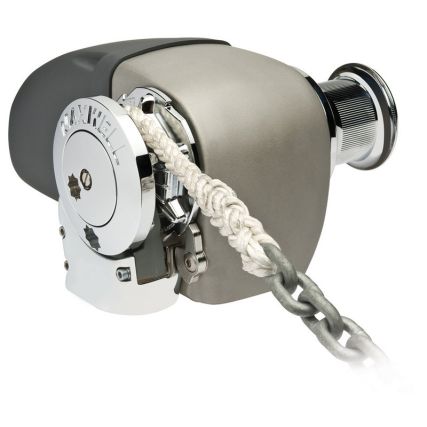

HRC 10-8 Horizontal Windlass 5/16″ Chain, 5/8″ Rope, 12V, with Capstan

Designed for boats up to 45 feet, the HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope / chain anchor winches.

Kit Includes

• Windlass
• On/Off Breaker Panel
• Reversing Solenoid
• Up/down Panel Switch
• Clutch Release Handle

Features

• The HRC10-8 is Maxwell’s fully automatic rope/ chain or all chain horizontal windlass
• Designed to effortlessly retrieve and deploy 8mm (5/16″ ) chain and 16mm (5/8″ ) three strand or 8-brait (plait) rope.
• The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16″ or 8 mm marine grade chain spliced to 5/8″ rope.
• The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck
• Case Material: Anodized Aluminum
• The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.
• This two piece watertight case allows for quick and easy, on-deck,routine maintenance.
• Simple ” bolt down” installation ensures effortless and rapid on-deck installation and set up.
• The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).
• The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.
• The unique Maxwell ” wrap around” horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.
• High quality Stainless Steel chainwheels
• The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.
• The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker.
• Cone type clutch/brake mechanism permits manual, “free fall” anchoring and emergency crank recovery of the rode and anchor if required.
• The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.
• Exclusive Maxwell 3 YEAR Limited Warranty

Specifications

• Maximum PUll: 1540 lbs
• Chain Short Link: 5/16″ or 8mm
• Chain Speed (Anchor Retrieval): 79 ft per Minute
• Rope Speed (Anchor Retrieval): 65 ft per Minute
• Rope Size (Nylon 3 strand or 8 Plait): 5/8″
• Power Supply (DC): 12VDC
• Motor Power: 1000 Watts
• Net weight: 42 lbs

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: HRC10812V
