Marinco Wiper Motor 1000 Series – 12v – 1.5″ Shaft – 110 Degree

Marinco Wiper Motor 1000 Series – 12v – 1.5″ Shaft – 110 Degree

Wiper Motor 1000 Series – 12V – 1.5″ Shaft – 110°

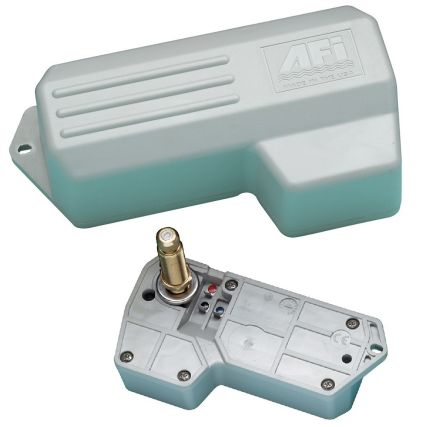

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18″ Deluxe arm and 18″ Deluxe blade combination at sweep sets of 80 degree or less or 16″ Deluxe arm and 16″ Deluxe blade combinations at a sweep set of 110 degree.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
• 0.625″ diameter shaft (16 mm)
• 12 volt heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self parking
• Retail version includes 5 amp fuse and holder (on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two shaft lengths: 1.5″ and 2.5″ (includes .5″ length of knurled arm fitting)
• Measures approximately 6.625″ L x 3.375″W x 2″ D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps+

Manufacturer Part Number: 36110
