Lenco 4″ X 12″ Limited Space Trim Tab Kit W/O Switch Kit 12v – Standard Finish – Short Actuator

Lenco 4″ X 12″ Limited Space Trim Tab Kit W/O Switch Kit 12v – Standard Finish – Short Actuator

4″ x 12″ Limited Space Trim Tab Kit w/o Switch Kit -12V – Standard Finish – Short Actuator

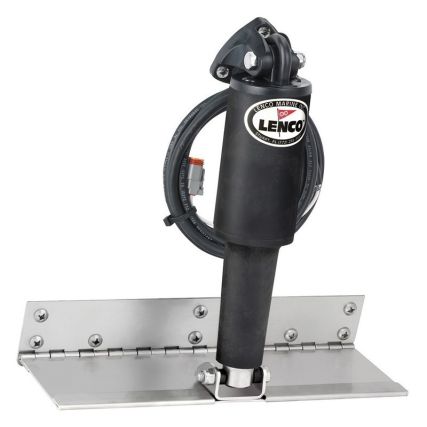

Lenco Electric Limited Space Trim Tab Kits are ideal for boats with a swim platform and/or ladder. They can be fitted to transoms that have a limited mounting area. Blades are 12 gauge – 304 SS with front of blade folded to provide a smooth trailing edge and 1/8″ diameter hinge pin. Fast response electric actuators for precise control. All units have Plug and Play connections and are fully submersible.

Kit Contents:

• 2 each of 12-gauge 304 stainless steel trim tab blades
• 2 each of #15057-001 XD actuator with 6′ lead and Deutsch plugs
• 2 each of #30133-103  20′ actuator extension wiring harnesses
• 2 each of #15085-001 (116) upper mounting bracket with gland seal
• 1 each of the Lenco owner’s / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 14′ to 25′
• Length of Tab: 4″
• Width of Tab: 12″
• Minimum Transom Height: 13″
• Blades: 12 Gauge Stainless Steel
• Finish: Standard
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: 15052-101
