Lenco 17″ X 12″ Extreme Duty Performance Trim Tab Kit W/O Switch Kit 12v

$1,301.37

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	RT17X12XDNS

SKU: LENRT17X12XDNS Category: LENCO

Description

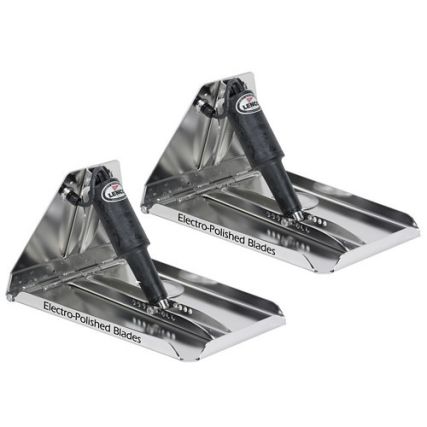

Lenco 17″ X 12″ Extreme Duty Performance Trim Tab Kit W/O Switch Kit 12v

17″ x 12″ Extreme Duty Performance Trim Tab Kit w/o Switch Kit- 12V -Single Actuator Kit

Lenco Electric Extreme Duty Polished Blade Trim Tab Kits feature fast response actuators for precise control. They are fully submersible and feature Plug & Play Deutsch connections. Blades are Electro-Polished 10 Gauge – 304 SS with 1″ turned up edges, an 85 degree inside taper and 3/8″diameter hinge pin. Extreme Duty actuators with 3/8″ SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75″ sacrificial anodes.

Kit Contents:

2 each of stainless steel trim tab planes
2 each of #15056-001XD extreme duty actuators with 6″ lead & Deutsch plugs
Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75″ sacrificial anodes.

The following to be supplied by customer:

Boat mounting hardware
Actuator extension harnesses (2 for single actuator application or 4 for dual)
will be required. Order the lengths of your choice. See the Lenco
Accessories section.

Specifications:

Suggested Boat Length: 20′ to 40′
Length of Tab: 17″
Width of Tab: 12″
Minimum Transom Height: 10.5″
Blades: 10 Gauge Stainless Steel
Finish: Electro-Polished
Switch Kit: Sold Separately
Class: Fuel Efficient
Compliance: CE Certified
Compatibility: Any Boat
Switch Required: 10222-211D, 15069-001 or 15070-001
Actuators: 12-volt
