Lenco 12″ X 12″ Electro-Polished Standard Trim Tab Kit

Lenco 12″ X 12″ Electro-Polished Standard Trim Tab Kit

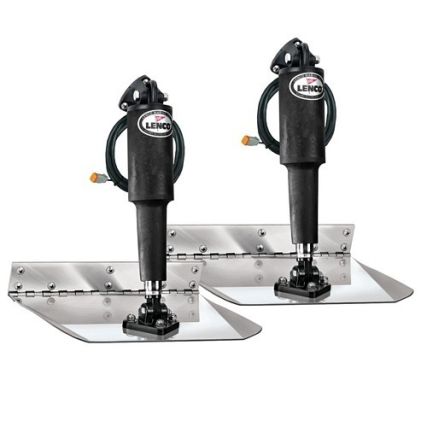

12″ x 12″ Electro-Polished Standard Trim Tab Kit

12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades areconstructed of 12-gauge 304 Electro-Polished stainless steel with a 5/8″ flared trailing edge & 1/8″ diameter stainless steel hinge pin.

Kits include:

• (2) 12-gauge stainless steel Electro-Polished blades
• (2) 15054-001 actuator with 6′ leads and Deutsch connectors
• (2) 30133-103 20′ actuator extension wiring harnesses
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
• Lenco owner’s/installation manual
• Stainless steel mounting hardware

Specifications:

• Boat Length:17′ – 30′
• L” x W”:12″ x 12″
• Hinge Height:2″
• Minimun Transom Height:14″

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 15114-101
