Lenco 101xd Extreme Duty Actuator – 12v – 2-1/4″ Stroke – 5/16″ Hardware

Lenco 101xd Extreme Duty Actuator – 12v – 2-1/4″ Stroke – 5/16″ Hardware

101 XD Actuator- 12 Volt- 2-1/4  Stroke with Mounting Hardware

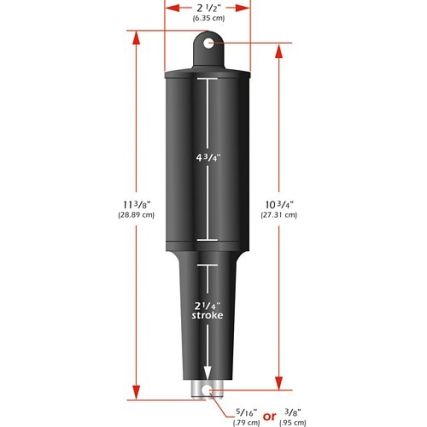

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8 inches.   Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco’s ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco’s tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof “Plug & Play” Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 5/16″ mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: 15055-001
