Lectrotab Manual Leveling Control – Single Actuator

Lectrotab Manual Leveling Control – Single Actuator

Manual Leveling Control – Single Actuator

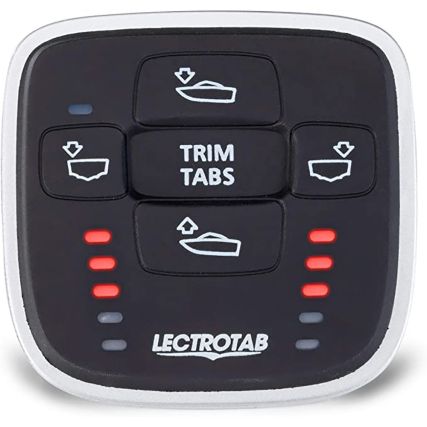

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

The panel is a simple upgrade from existing rocker switches, and is suitable for 12V or 24V systems.  The control panel is completely sealed, waterproof and provides a user-friendly control for a more enjoyable boating experience.

Features:

• Microprocessor based trim tab control with LED tab position indicators
• Single button press to move both tabs up or down simultaneously
• Rubber overlay with a sleek bezel design
• Automatic return to last tab position if ignition key is turned off and back on again
• Will not deteriorate in sunlight
• Automatic tab retraction and calibration with key or accessory switch off
• Easy upgrade from rocker switch style control or Oval control
• No external power module required for one actuator per tab system
• LED tab position indicators dim automatically in darkness and brighten in sunlight

Technical Specifications:

• Display Color – Black
• Actuators per Tab Plate – One (1)
• Dimensions (W x H) – 3.15″ x 3.07″ (80 x 77 mm)
• Mounting Hole Cutout – 2″ (50 mm)
• Operating Voltage – 12 or 24 V

*Sold as an Individual

Manufacturer Part Number: MLC-1
