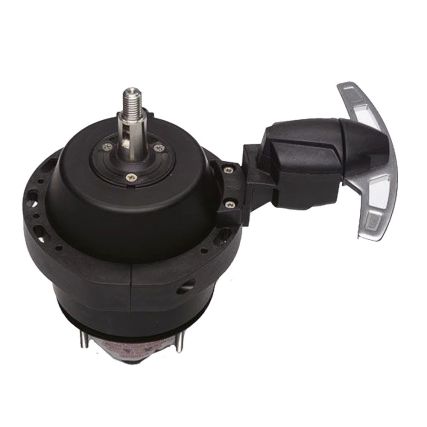

Impulse Single Paddle Trim Switch

Impulse Single Paddle Trim Switch

Single Paddle Trim Switch

For complete control of engine trim and tilt, trim tabs, jackplates, and other onboard systems, the innovative Paddle Trim system is the answer.

Adaptable to existing front-mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel.

Features:

• Equipped with one waterproof “MOM.ON-OFF-MOM.ON switch
• Max load 5 Amp @ 12VDC.
• Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”).
• Easy to install on the following steering systems:
• Front and tilt mount hydraulic helms
• Tilt mount mechanical helms
• The wiring harness, labels, and mounting hardware kit are included. The mounting plate differs between the front and tilt mount. Installation is ordered separately.

Manufacturer Part Number: TR-PTS1
