Hubbell M5100p7 100a 480v 5-Wire Male Plug

Hubbell M5100p7 100a 480v 5-Wire Male Plug

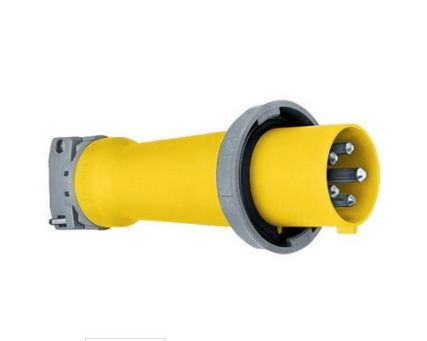

Hubbell M5100P7 5-Wire 100 Amp 480 Volt Male Plug

Model: M5100P7

• Solid one-piece pins for reliable electrical contact
• Gasketed sealing ring provides watertight seal
• Raised collar surrounds each phase pin

Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Plug, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Specifications

Number of Poles	4
Amperage Rating	100
Connectivity	Pressure Terminal Screws
Current Rating	100
Phase	Three Phase
Voltage Rating	Three Phase Y 277 VAC Three Phase Y 480 VAC
Number Of Wires	5
Wire Size	#3 To #1/0 AWG copper wire only
Mates with	M5100C7

Manufacturer Part Number: M5100P7
