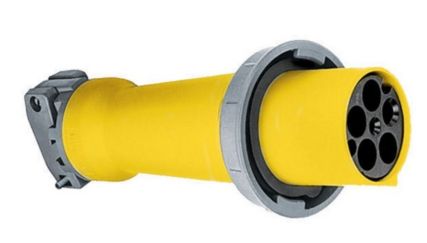

Hubbell M5100C7R 5-Wire 100 Amp 480 Volt Female Connector Body

Model: M5100C7R

• Insulated non-metallic housing
• Self-closing gasketed cover
• Color coded housings for easy identification

Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Specifications

Number Of Poles	4
Temperature Rating	Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating	100
Connectivity	Pressure Screw Terminal
Current Rating	100
Voltage Rating	Three Phase Y 277 VAC Three Phase Y 480 VAC
ConductorRange	#3AWG to #1/0AWG
Number Of Wires	5-Wire
Number of Conductors	5-Wire Grounding
Mates with	M5100B7R

Manufacturer Part Number: M5100C7R
