Garmin Gmr426 Xhd2 4kw 6′ Open Array Network Radar

Garmin Gmr426 Xhd2 4kw 6′ Open Array Network Radar

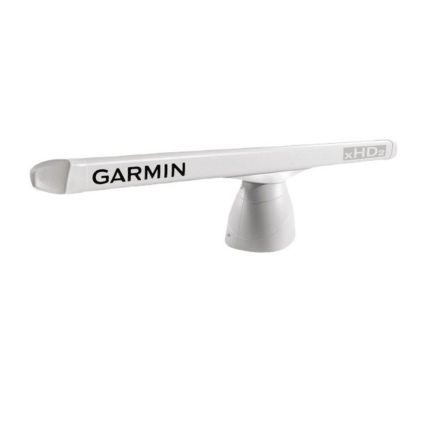

Garmin GMR™ 426 Xhd2 Open Array Radar and Pedestal

6-foot Open Array Radar with 4 kW of Power

Model: K10-00012-23

• 4 kW high-definition radar with 6-foot open array
• The 1.1-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out targets at a distance, while 8-bit true color imagery enhances target separation.
• This open-array radar delivers 4-kW transmit power and clear echo definition at all ranges. It has rotation speeds of 24 and 48 RPM with a max range scale of 72 nautical miles.
• This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
• Quiet rotation and reliable operation

The GMR 426 xHD2 4 kW high-definition 6-foot open-array radar is designed for serious seafarers of larger yachts and sport fishing boats that are most likely under 40-feet. The GMR 426 xHD2 is the open array you need to get the features you want. It’s capable of excellent sensitivity and consistent target positioning, making it perfect for cruising and fishing offshore, overnight and in foggy, limited or no visibility conditions.

High-power xHD2 Radar with Narrow 1.1 Degree Beam
This high-definition 4 kW radar has the power to deliver excellent range, up to 72 nautical miles, even in fog or rain. Its narrow 1.1 degree horizontal beamwidth picks out targets well off in the distance. It paints a clear image of the shoreline, other vessels, and impending weather on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speeds of 24 and 48 rpm with a max range scale of 72 nautical miles

Specifications

Water Resistence Rating	IPX6
Rotation Speed	24 and 48RPM
Transmit Power	4kW
Beam Width	1.1° horizontal, 23° vertical
Range	72 nm
Minimum Range	20m
MARPA	Yes, Requires Optional Heading Sensor
Radar Overlay	yes
Dual Range Support	Yes
Sea Filter	yes
No Transmit Zone	Yes
Guard Zone Alarm	Yes
Bird Mode	Yes
Dual Active Radar	Yes
Echo Trails	Yes
Input Voltage	10-32V
Dimensions	4′ array: 52.25″ x 5″ x 6.75″ (132.7 x 12.7 x 17.1 cm) Pedestal: 20.5″ x 12.75″ x 12.5″ (52 x 32.4 x 31.8 cm)

What’s in the Box:

• 4 kW Pedestal 010-01333-00
• 6′ Antenna 010-01333-04
• 15m power cable
• 15m NetworkCable

Manufacturer Part Number: K10-00012-23
