Garmin Bronze Thru-Hull Wide Beam Transducer W/Depth & Temp – 12 Degree Tilt, 8-Pin – Airmar B175hw

Garmin Bronze Thru-Hull Wide Beam Transducer W/Depth & Temp – 12 Degree Tilt, 8-Pin – Airmar B175hw

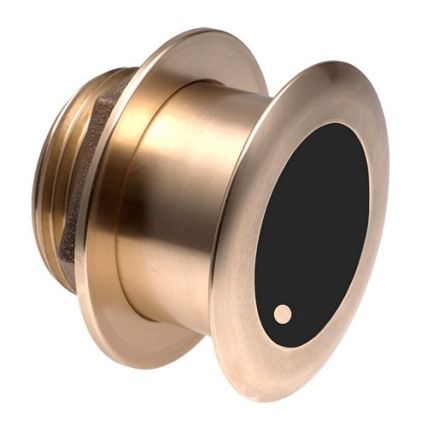

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp – 12° Tilt, 8-Pin – Airmar B175HW

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600′; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 8 to 15° deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 010-12181-21
