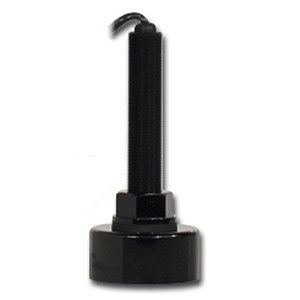

Furuno 235-Ihf 235khz P79 Nmea 2000 In-Hull Transducer

Furuno 235-Ihf 235khz P79 Nmea 2000 In-Hull Transducer

• 235KhZ
• Weight: 0.9 kg (2 lb)
• Acoustic Window: Layered plastic urethane
• Hull Deadrise: 0°: to 22°:
• Data Update Rate: 1 per second
• Minimum Depth Range: 0.5 m (1.6?)
• Maximum Depth Range: Up to 150 m (500?)
• Pressure Rating: 3 m (10?)
• Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)?*p/nm = pulses per nautical mile
• Supply Voltage: 9 VDC to 16 VDC
• Supply Current: 200 mA
• Cable Length: 6 m (20?) devicenet
• NMEA 2000® Load Equivalency Number (LEN): 4
• CE Regulation: Complies to IERC945

Manufacturer Part Number: 235-IHF
