Furuno 1623 W/O Cable

Furuno 1623 W/O Cable

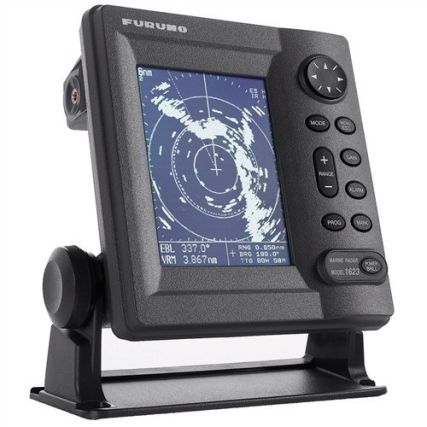

Small in size, the 1623 is big on power clarity and advanced radar features. The slim-line monochrome LCD display and lightweight radome antenna make it ideal for power or sail boats as small as 17 feet.
This 2.2kW radar has a 16 nautical mile range, yet will zoom down to 1/8 nautical mile for tight navigation in harbors and inlets. The 1623 radar lets you readily identify objects, thanks to a high definition 6″ Silver Bright LCD screen that clearly separates targets. Plus, the four-tone target display lets you easily differentiate between stronger and weaker echoes, helping to alert you of any danger.

Standard Features
Waterproof, 6 Inch Silver Bright Monochrome LCD Display
13 User Selectable Range Scales from 1/8 to 16 N.M .
Ergonomic design with predictable menu
Display Resolution of 240(H) X 320(V) Dots
Targets Displayed in up to 4 Levels of Gray Tones
2.2 Kilowatt Transmitter Unit
New Tri-speed 15″ radome antenna, increases RPM at short ranges for better target accuracy
3 Transmitter Pulse lengths and Repetition Rates
Linear Receiver with 10 dB Noise Figure
Automatic Receiver Tuning
Automatic or Manual Sea-Clutter (STC) Adjustment
Automatic or Manual Receiver Gain Adjustment
Sector Blanking
Rain Clutter (FTC) Control
Echo Stretch and Interference Rejection Modes
Watchman Mode to control the Radar system for Vessel Safety
Reverse Video Display (White Targets and Marks on a Black Background)
Full Screen Navigation Data Display in the Standby Mode*
Omni Pad Control for rapid Cursor and Menu Operation
Picture Off-Center Shift
Electronic Bearing Line and Variable Range Marker
Target or Echo Trails with Selectable Time Intervals
Waypoint Lollipop On-Screen to aid in Vessel Navigation*
Adjustable Duplex (In or Out) Radar Guard Zone Alarm
TLL (Target Lat/Lon) output for use with plotter ( must accept TLL sentence info)*
Time offset adjustment
[PROG] key provides menu shortcuts
User programmable Nav Data Screens
Ability to connect BBWGPS GPS/WAAS receiver
Wind indication with appropriate sensor input


Manufacturer Part Number: 1623W-OCABLE
