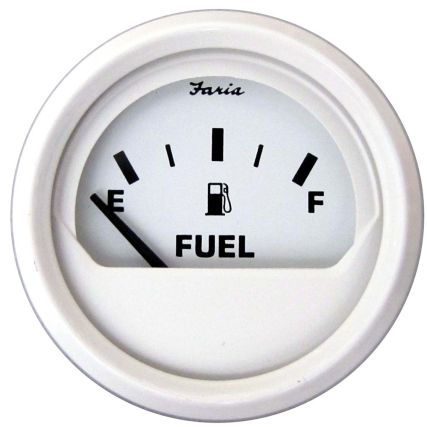

Faria Dress White 2″ Fuel Level Gauge (Metric)
$32.81
| Special Shipping Message | Free Ground Shipping* |
|---|---|
| Manufacturer Part Number: | 13117 |
| Specifications: |
|
Faria Dress White 2″ Fuel Level Gauge (Metric)
2″ Fuel Level Gauge (E-1/2-F)
Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.
Fuel Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc…
As the sender’s resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.
2″ – Hole Size: 2.0625″ (53mm)
Specifications:
- 10 to 180 OHMS
- Anti-scratch glass lens
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
Factory P/N GP9722
*Sold as an Individual
**Gauge Cover not Included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer Part Number: 13117
