Curt Spectrum Brake Control In-Dash Mount

Curt Spectrum Brake Control In-Dash Mount

Spectrum Brake Control In-Dash Mount

The CURT Spectrum trailer brake controller gives users powerful, precise braking operation in an extremely simple and subtle design inside the vehicle. It features an LED-equipped rotary knob interface and a separate main module with an advanced accelerometer. This allows for an OE look and feel to be maintained inside the cab of a vehicle. The separated design of the Spectrum brake controller allows the main module to be mounted behind the dash of the vehicle, completely out of sight. Meanwhile, the compact, unobtrusive interface can be fully integrated into the dash with just a single hole.

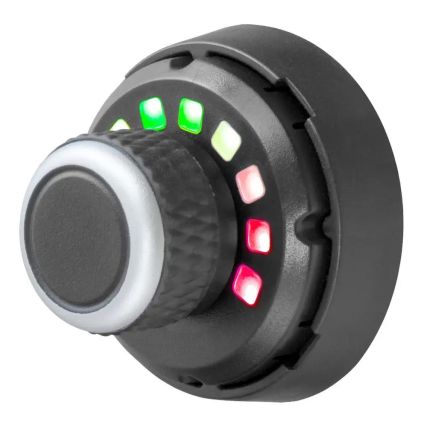

The interface of the Spectrum trailer brake controller is simple but powerful. It is a single rotary knob with a push-button in the center that allows the driver to adjust brake power output. It is equipped with ten tri-color LEDs (red, blue, and green) to show the automated power output of the control. There is no need for a separate display or additional controls, keeping the dash of the vehicle clean, professional, and uncluttered.

Behind the Spectrum brake controller is a powerful main module with a triple-axis motion-sensing accelerometer. This advanced circuit can detect the inertia of the vehicle and trailer on all axes of three-dimensional space. Whatever speed and whatever grade users are traveling on—up or down a hill—the Spectrum brake controller produces the exact amount of power needed for a smooth, safe stop every time. The main module can be mounted with the included mounting brackets or adhesive patch.

The Spectrum electric brake controller is a fully compatible unit, able to operate up to eight trailer brakes at a time. It can be used on vehicles with ABS brakes and cruise control, and it works with low-voltage and PWM systems.

Like most CURT trailer brake controllers, the Spectrum installs using a quick plug harness. These wiring harnesses are vehicle-specific and plug into any CURT brake controller for a custom-fit installation in the vehicle. The Spectrum also has automatic leveling, and calibration features to simplify the setup process.

Features:

• Controls all brake settings with a simple push-button rotary knob
• Clean, dash-mounted, OEM-style user interface with 10 tri-color LEDs
• The main module can be mounted out of sight
• Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
• Easily accessible manual override with the press of a button
• Features two installation options: drill mount or surface adhesive mount
• Automatic leveling and calibration eliminate setup requirements
• Plug-and-play install with vehicle-specific quick plug harness (sold separately)
• Operates 2-8 trailer brakes at a time (1-4 axles)
• Built-in reverse-polarity and short-circuit protection
• Compatible with low-volt, PWM, ABS, cruise control, and electric over hydraulic
• Tow vehicle ‘low voltage’ and trailer disconnect indicators
• Limited lifetime warranty

Notes:

• Includes mounting hardware
• Knob’s outside diameter is 1.9 in.
• Patent #10,960,860

Specifications:

• Activation: Tri-axis inertia
• Axles: 1 – 4 / 2 – 8
• Display: Tri-color LED
• Hub Warehouse: D25
• Level Adjust: Auto
• Mount Angles: Various
• Warranty: Limited Lifetime

Manufacturer Part Number: 51170
