Curt Loaded Ball Mount W/2-5/16″ Ball – 2″ Shank – 2″ Drop – 7,500 Lbs

Curt Loaded Ball Mount W/2-5/16″ Ball – 2″ Shank – 2″ Drop – 7,500 Lbs

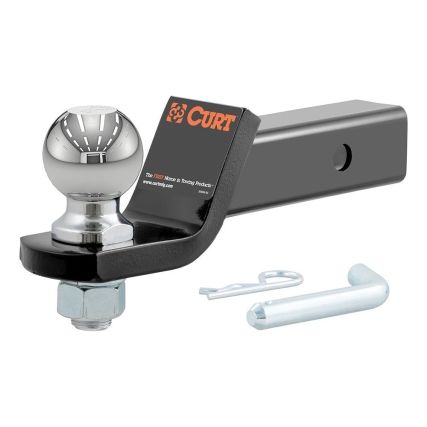

Loaded Ball Mount with 2-5/16″ Ball – 2″ Shank – 2″ Drop – 7,500 lbs

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate-size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings.

This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2-5/16″ trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers, and recreational vehicle trailers used for hauling dirt bikes, motorcycles, and ATVs. (NOTE: Never exceed the lowest weight capacity of any towing component, i.e., the vehicle, hitch, trailer, etc.) This ball mount also has a length of 8-1/4″, a drop of 2″, and comes with a gloss black powder coat finish to resist rust, chipping, and UV damage. All CURT loaded ball mounts feature 2″ x 2″ shanks and are made with the same superior quality CURT puts into each of the company’s products.

Features:

• Rated at 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
• Fits trailer hitches with a 2″ x 2″ receiver tube opening
• Factory-torqued CURT trailer ball accepts a 2-5/16″ coupler
• 2″ drop for precise trailer leveling
• The hollow shank weighs less and can be used with an anti-rattle kit
• CNC-formed, robotically welded, and mechanically descaled for a perfect fit
• Protected by a durable powder coat finish
• Trailer ball features a polished chrome-plated finish
• 5/8″ hitch pin and clip for secure mounting in the receiver tube
• Assembled in the USA

Specifications:

• Includes: 2-5/16″ trailer ball #40005, pin & clip
• Ball Diameter: 2-5/16 in.
• Drop: 2 in.
• Finish: Gloss black powder coat
• Gross Trailer Weight (GTW): 7,500 LB
• Hub Warehouse: D25
• Length: 8-1/4 in.
• Part Type: Loaded ball mount
• Receiver Tube Size: 2 in.
• Tongue Weight (TW): 750 lb.
• Warranty: Limited lifetime warranty (one-year finish, one-year parts)

*Weight capacity may change if the trailer ball is removed

Manufacturer Part Number: 45041
