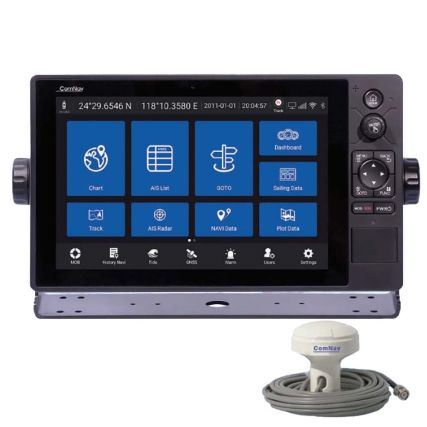

M10 DGPS Chartplotter with Integrated Class B AIS Transceiver

The Comnav M10 DGPS uses the ephemeris combined with a histogram to show the GNSS satellite situation and signal strength. It supports GPS and BDS positioning systems running together to improve accuracy.

The new digital repeater dial provides an easy-to-read and visualizable image for HDT, COG, SOG, BRG, RNG, Longitude, Latitude, XTE, ETA, DPT, TEMP, Wind, and Date.

Chartplotter Specifications:

• Operation System – Android 5.1 with OpenGL ES .0 & OpenCL 1.1
• CPU – Cortex-A17 Quad Core
• CPU Speed – 1.8GHz  Bit
• RAM – 2GB DDR3 1333MHz
• Flash Memory – 16GB
• Video Engine – Mali-T764
• Keyboard – 1 Knob Encoder and 9 Function Keys
• Touch Panel – Capacitive Multi-Touch Screen
• Size – 10.1″
• Brightness – 800 cd/m² (Max)
• Viewing Angle – Capacitive Multi-Touch Screen
• Resolution – 1280×800
• Power Voltage – DC 10v-36v
• Power Consumption – 14W or less (24 VDC)
• Audio – 1W
• Micro SD Card Slot – Supports Two 128G High Speed Micro-SD Cards

AIS Transceiver Specifications:

• Frequency – 156.025 – 162.025MHz
• Bandwidth – 25KHz
• Modulation – GMSK/FM
• Data Rate – 9600bps
• Number of AIS Transmitters – 1
• Number of AIS Receivers – 2 Channels: Channel A CH87B (161.975MHz), Channel B CH88B (162.025MHz)
• Transmitting Power – 2W
• Rx Sensitivity – <-107 dBm @ 20% PER

Manufacturer Part Number: 20130017
