Cole Hersee Midi Flex Series – 32v Bolt Down Fuse Holder F/Fuses Up To 200 Amps

Cole Hersee Midi Flex Series – 32v Bolt Down Fuse Holder F/Fuses Up To 200 Amps

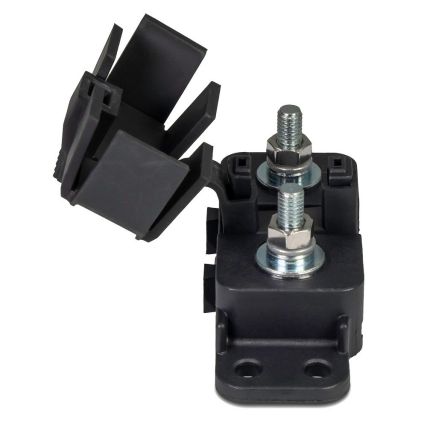

MIDI Flex Series – 32V Bolt Down Fuse Holder for Fuses Up To 200 Amps

Thanks to its flexible cover, the MIDI Flex Series 32V Bolt-Down Fuse Holder makes it simple to install up to a 200A MIDI fuse. Its exterior features 6 positions for cable entry and accommodates large wire sizes and ring terminal stack-up. This bolt-down fuse holder has a dovetail side feature that lets you connect multiple MIDI Flex Series fuse holders. Busbars for multi-fuse applications are available (sold separately), so you can create a fused automotive power distribution block. MIDI Flex Series fuse holders can also be combined with MEGA Flex Series fuse holders (sold separately) for a high and low-amperage solution.

Features:

• Carded blister packaging for simple retail display
• Compatible with MIDI bolt-down fuses up to 200A (sold separately)
• The flexible cover allows cable entry at 6 different locations, simplifying installation and accommodating large wire sizes and ring terminal stack up
• The dovetail feature lets you connect multiple Flex Series fuse holders together to create a fused power distribution block
• Slots molded into the base enable secure tie-wrap mounting
• Zinc-plated steel M5 studs and hex nuts
• Bolt-down fuse holder base features M4 mounting holes
• UL 94 V-0 flammability rating

Applications:

• Battery and alternator Connections

*Fuses not included

Manufacturer Part Number: 04981038-BP
