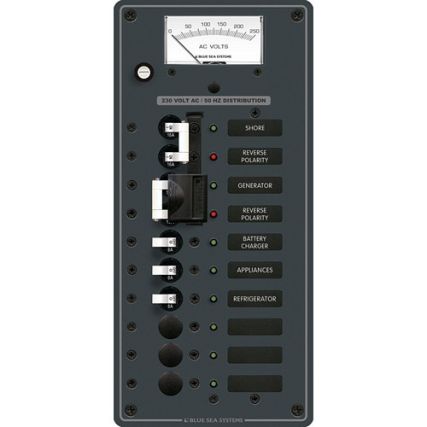

Blue Sea 8589 Ac Toggle Source Selector (230v) – 2 Sources + 6 Positions

Blue Sea 8589 Ac Toggle Source Selector (230v) – 2 Sources + 6 Positions

AC Toggle Source Selector (European)

p045.19PN: 8589
White Switches

(2) 16A Double Pole Circuit Breakers Installed

(3) 8A Single Pole Circuit Breakers Installed

(1) 9354 AC Analog Voltmeter

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage – 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Labels

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Manufacturer Part Number: 8589
