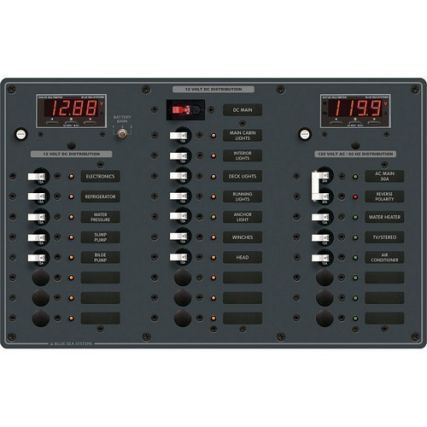

Blue Sea 8408 Ac Main + 6 Positions / Dc Main + 18 Positions

Blue Sea 8408 Ac Main + 6 Positions / Dc Main + 18 Positions

AC Main + 6 Positions / DC Main + 18 Positions

Installed AC Breakers

(1) 30A

(3) 15A

(1) 8247 AC Digital Multimeter w/ Alarm

Installed DC Breakers

(1) 100A Main

(12) 15A

(1) 8248 DC Digital Multimeter w/ Alarm

• 120V AC
• 12/24V DC
• All AC and DC buses installed and fully pre-wired
• Label backlighting pre-installed
• ON – indicating LEDs installed in all circuit positions
• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
• Maximum panel amperage – 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Detailed installation instructions and cutout template included
• Countersunk mounting holes throughout
• Includes set of 60 common AC and DC Large Format Labels
• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 8408
