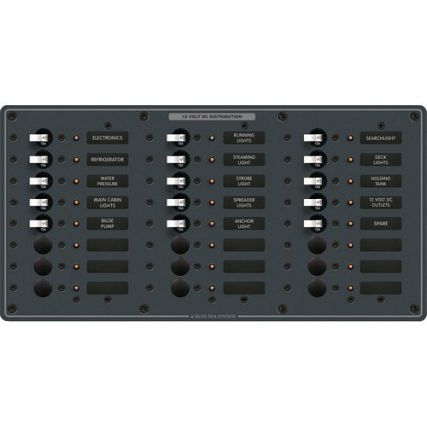

Blue Sea 8264 Traditional Metal Dc Panel – 24 Positions

Blue Sea 8264 Traditional Metal Dc Panel – 24 Positions

8264 Traditional Metal DC Panel – 24 Positions

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions

Specifications:

• Positions: 24
• Nominal Voltage: 12 VDC/24 VDC
• Maximum Amperage: 100A per bus
• Height: 7.50″ (190.5 mm)
• Width: 14.75″ (374.65 mm)
• Weight: 7.45lb. (3.38 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 8264
