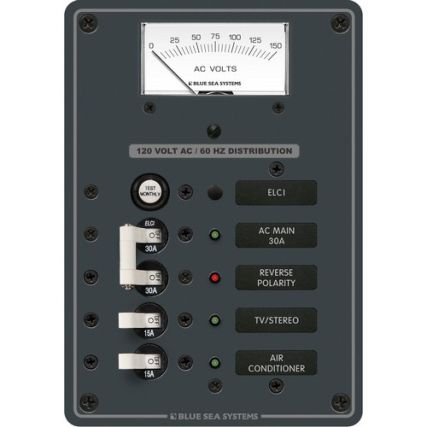

Blue Sea 8102 Elci Gfci Panel Ac 2 Position

Blue Sea 8102 Elci Gfci Panel Ac 2 Position

ELCI Main 30A Double Pole + 2 Positions with Voltmeter

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate – 30 mA
• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
• Red ” Reverse Polarity” LED
• All circuit label positions are backlit
• “ON” indicating LEDs

Specifications
Positions 2
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25″ (133.35mm)
Width 7.50″ (190.5mm)
Depth 3.50″ (88.9mm)
Weight 2.25lb (1.02kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 8102
