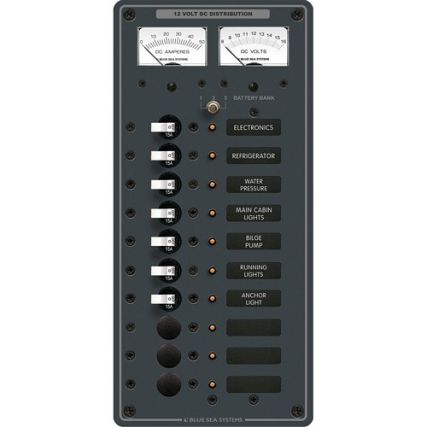

Blue Sea 8082 Dc 10 Position Toggle Branch Circuit Breaker Panel

Blue Sea 8082 Dc 10 Position Toggle Branch Circuit Breaker Panel

8082 DC 10 Position Toggle Branch Circuit Breaker Panel

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Includes set of 30 common DC labels
• Label backlighting pre-installed
• All LEDs installed
• Detailed installation instructions and cutout template
• 8028, 8-16 Volt DC Micro Voltmeter
• 8041, 0-50 Amp DC Micro Ammeter
• Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
• 7 15A Single Pole circuit Breakers

Specifications:

• Positions: 10
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 11.25″
• Width: 5.25″
• Depth: 2.5″
• Weight: 3.35 lbs

Included:

• (7) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
• (1) 8030 Basic DC Panel Label Set – 30 Labels
• (1) 8028 DC Micro Voltmeter – 8 to 16V DC (Meter)
• (1) 8041 DC Micro Ammeter – 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 8082
