Blue Sea 7635 M-Lvd Low Voltage Disconnect

Blue Sea 7635 M-Lvd Low Voltage Disconnect

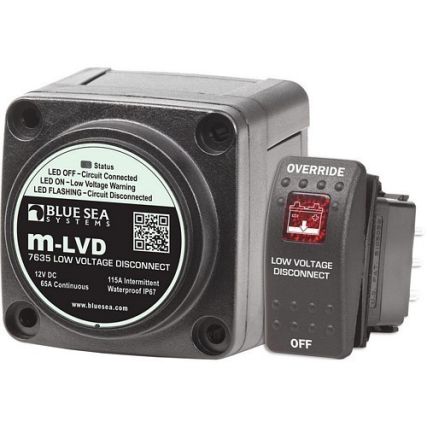

m-LVD Low Voltage Disconnect

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don’t get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

• Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
• Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
• Remote Control Switch Functions:
  • Disconnect Voltage Adjustment – Sets desired disconnect voltage
  • Override – Temporarily delays circuit disconnect for 10 minutes
  • OFF – Temporarily disconnects circuits until voltage rises
  • Override or OFF – Silences alarm (optional alarm required)

• Case design allows surface, front panel, or rear panel mounting
• Rear insulating cover protects rear contacts
• Waterproof – rated IP67 for temporary immersion

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 7635
