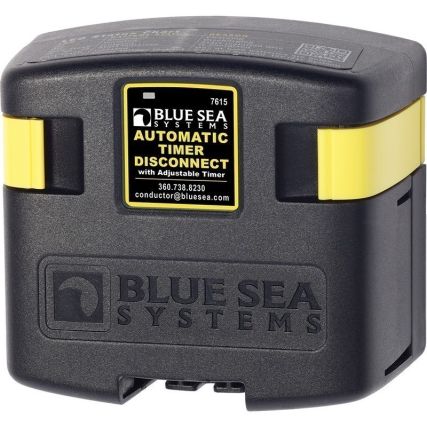

ATD Automatic Timer Disconnect

Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power

• 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
• Disconnect can be triggered based on time, low voltage, or removal of 12V signal
• Low voltage will disconnect if time hasn_t been reached to preserve battery power
• Time and voltage options can be turned off to allow 12V signal based disconnect
• Clip-on cover insulates terminal connections
• One-piece stainless flange nuts ensure safe and secure connections
• Integrated LED indicates status

Specifications:

• Nominal Voltage:12V DC
• Amperage Operating Current: 175mA(Combine / 15mA(Open)
• Continuous Rating:120A
• Intermittent Duty: 210
• Terminal Stud Size: 3/8″-16 (M10)
• Time Range: 15min-4hrs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 7615
