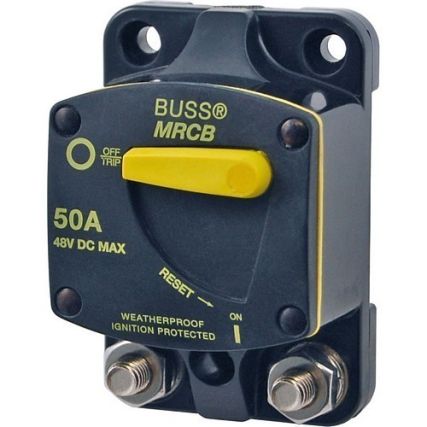

Blue Sea 7139 187 – Series Thermal Circuit Breaker – 50amp

Blue Sea 7139 187 – Series Thermal Circuit Breaker – 50amp

187 – Series Thermal Circuit Breakers – Surface Mount

50 Amp Circuit Breaker

PN:  7139

Features:

• Combines switching and circuit protection into a single device
• All components meet SAE J1171 external ignition protection requirements
• Clear, single lever operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Large clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected – safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class:	Type III – Switchable / Manual Reset – Trip Free
Type:	Thermally Responsive Bi-Metal Blade
Case Material:	Thermoset Polyester
Voltage Rating:	48 Volts DC Maximum
Interrupt Rating:	5,000 Amperes @12 Volts DC
	3,000 Amperes @24 Volts DC
	1,500 Amperes @42 Volts DC
Operating Temperature Range:	-25C° to +82C°

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 7139
