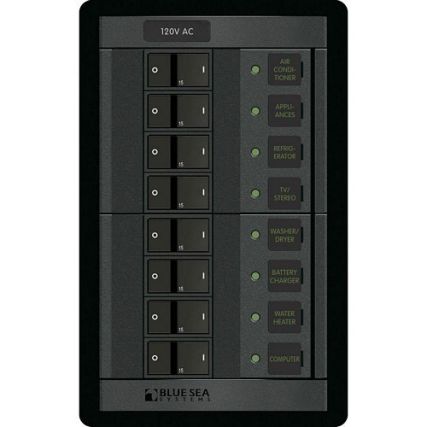

Blue Sea 1228 120v Ac 8 Position

Blue Sea 1228 120v Ac 8 Position

120 Volt AC 8 Position

Features:

• All circuit label positions are backlit
• “ON” indicating LEDs installed in all circuit positions
• Includes 4206-Square Format Label Set

Specifications:

• Positions: 8
• Nominal Voltage: 120V AC
• Maximum Amperage*: 100A
• Height: 7.75″ (196.85mm)
• Width: 4.88″ (123.95mm)
• Depth: 3.00″ (76.2mm)
• Weight: 2.68lb (1.22kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4206 – Basic AC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 1228
