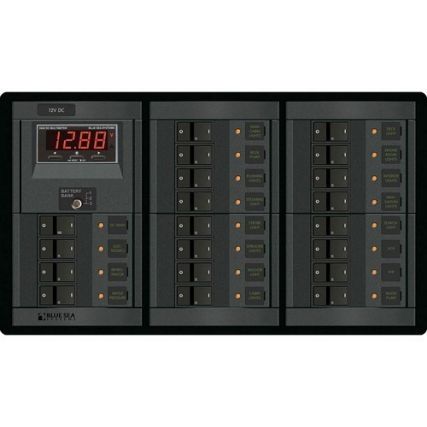

Blue Sea 1221 12v Dc Main + 19 Positions W/Digital Meter

Blue Sea 1221 12v Dc Main + 19 Positions W/Digital Meter

12 Volt DC Main + 19 Positions w/Digital Meter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers
• Available with voltmeters, ammeters, and digital multimeters
• Includes 4205-Square Format Label Set

Specifications:

• Positions: 19
• Nominal Voltage: 12V DC
• Maximum Amperage*: 100A per bus
• Height: 7.75″ (196.85mm)
• Width: 13.63″ (346.2mm)
• Depth: 4.00″ (101.6mm)
• Weight: 8.80lb (3.99kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(19) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL](1) – 7549 – C-Series Flat Rocker Circuit Breaker – Single Pole 100A (Main)
(1) – 8248 – DC Digital Multi-Function Meter with Alarm (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 1221
