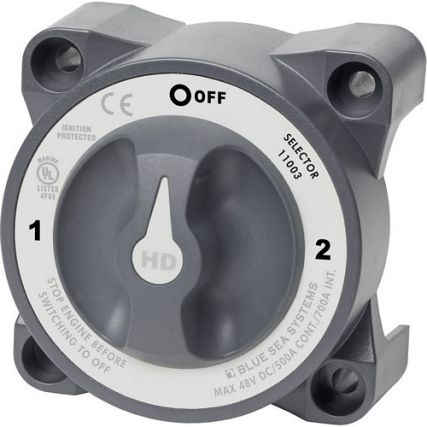

Blue Sea 11003 Hd-Series Battery Switch W/Alternator Field Disconnect – 3-Position

Blue Sea 11003 Hd-Series Battery Switch W/Alternator Field Disconnect – 3-Position

11003

Features:

• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Ignition protected safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm) battery cables
• M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2″ and M12 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only
• Case design allows surface or rear panel mounting

Switch Ratings:

10 Sec: 2750A
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 11003
