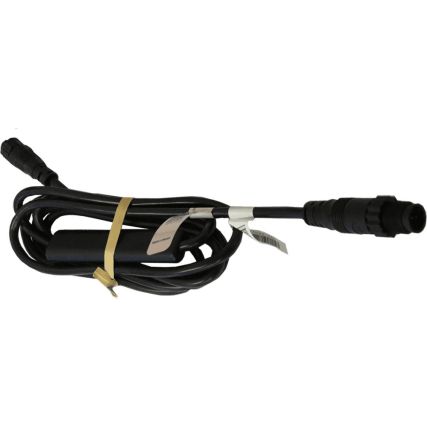

WS310 Wired Interface

WS310 (wired) Interface for use with WS310 Wind Sensor, allows connection to your NMEA 2000® network.

Features:

• Interfaces a WS310 wind sensor to an NMEA 2000 network

Specifications:

• NMEA 0183 Sentences supported: MWV, R
• NMEA 2000 Connectivity: 1 x Micro-C port, 1 LEN
• Supply Voltage: 12V DC (9 – 16V DC)
• Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
• Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
• Waterproof Rating: IPX7
• Compass Safe: 300mm (12″)
• Dimensions W x H x D: 90 x 20 x 10mm (3.5 x 0.8 x 0.4″)
• Warranty: 2 Years

Manufacturer Part Number: 000-14389-001
