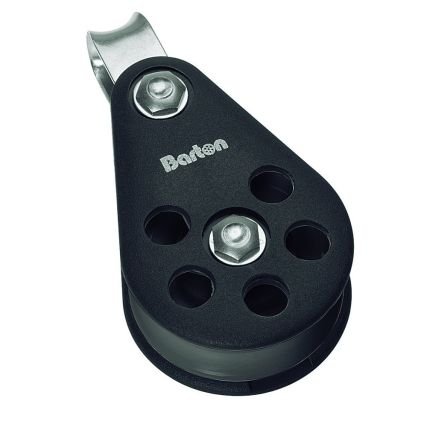

Barton Marine Series 5 Single Fixed Eye Block – 54mm

Barton Marine Series 5 Single Fixed Eye Block – 54mm

Series 5 Single Fixed Eye Block – 54mm

Plain Bearing Blocks

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Specifications

• Sheave size: 54mm x 17mm
• Max rope diameter: 12mm
• Safe working load: 750kg / 1650lbs
• Breaking load: 1500kg / 3300lbs
• Length: 107mm
• Weight: 154g

Manufacturer Part Number: N05 110
