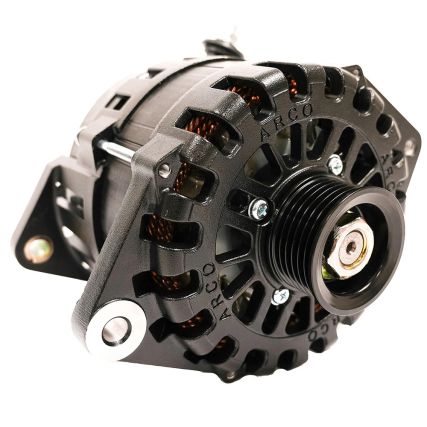

Zeus A225S 1″-2″ Alternator with Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 – 20% cooler than incumbent alternators due to:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM Components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods.
• For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage – 12v
• Field Type – P
• Rotor Poles – 16
• Stator Size – 130mm
• Frame Size – Small
• Weight – 12lbs/6.7kg
• Regulation – Internal/External
• Output Voltage – 14.1v (default)
• Finish – (Black) Cerakote or E-coating
• Cut-In RPM – 1,061 Alternator RPM
• Maximum Alt RPM – 19,000
• Battery Post – M8 Thread Post, Side Mount
• Standard Pulley – 49K6 (6-groove, 49mm)
• Pulley Mount – 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware – M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes – 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) – 254 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) – 187 Amps
• Sustained Idle Output (Hot, 3,000 RPM) – 157 Amps

Mounting Application:

• Replaces most domestic styles using a single 1or 2” mounting foot (e.g., Motorola, Prestolite).

Manufacturer Part Number: A225S-12-SF12-IE-49K6
