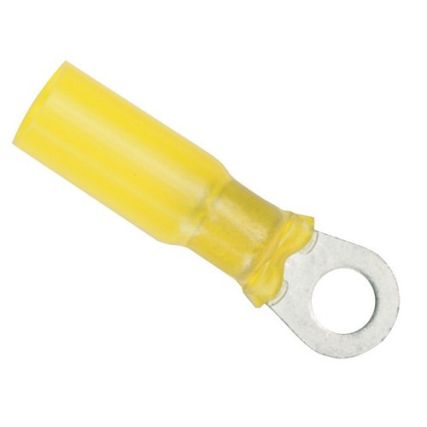

Ancor 12-10 Gauge – #8 Heat Shrink Ring Terminal – 25-Pack

Ancor 12-10 Gauge – #8 Heat Shrink Ring Terminal – 25-Pack

12-10 Gauge – #8 Heat Shrink Ring Terminal – 25-Pack

Gauge Size: 12-10
Screw Size: #8
Quantity: 25

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
• UL Listed and CSA Recognized
• Highest shrink ratio – shrinks to 1/3 original size.
• Shrinks at 257 deg. F/125 deg. C.
• Operating temperature range 40 deg. C to 110 deg. C.
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief.
• Tinned for corrosion resistance.
• Pure copper for maximum current flow.
• Brazed seam for maximum strength.
• Wire Range: 12-10
• mm: 3-5

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 312225
