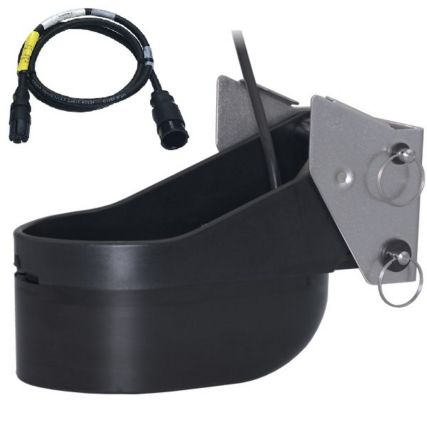

Airmar Tm275c-Lhw Transom Mount Transducer Low/High Wide Raymarine 11-Pin

Airmar Tm275c-Lhw Transom Mnt Low/High Wide Raymarine 11-Pin

Airmar TM275C-LHW Transom Mount Low/High Wide CHIRP Transducer with Raymarine 11-Pin Mix-N-Match Cable

Model: TM275C-LHW-11R

• Depth & fast-response water-temperature sensor
• Low – CHIRPS from 42 kHz to 65 kHz – 25° to 16° beamwidth
• High – CHIRPS from 150 kHz to 250 kHz – 25° constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Get more coverage under the boat with Airmar’s new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

A unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar’s new wide beam format also creates crisper and larger return images on the display. We’ve got you covered.

Specifications

Hull deadrise	up to 28°
Acoustic window	Urethane

What’s in the Box:

• TM-275C LHW
• Transom Mount Bracket and Hardware
• 3 – 3deg Shims
• MMC-11R-LDB Cable

Manufacturer Part Number: TM275C-LHW-11R
