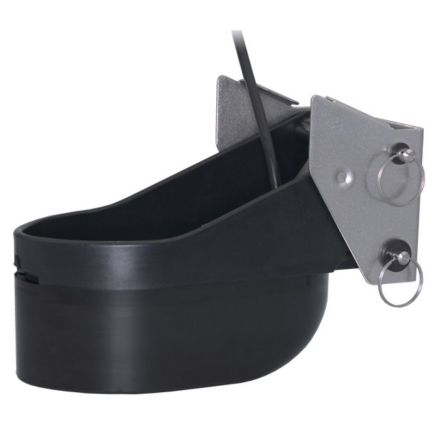

Airmar Tm265c-Lh Transducer With Raymarine 11-Pin Mmc

Airmar Tm265c-Lh Transducer With Raymarine 11-Pin Mmc

Airmar TM265C Low/High CHIRP Transom Mount Transducer with Raymarine 11-Pin Mix-N-Match Cable

Model: TM265C-LH-11R

• 8 Internal Broadband Ceramics
• Depth & fast response water temperature sensor
• Urethane housing and stainless steel mounting bracket
• Can retrofit to existing TM258 & TM260 bracket
• Exclusive Xducer ID® technology

Rely on Airmar’s new broadband transducers for the ultimate fishing mission! Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25′-40′), the TM265LH Chirps across the following bandwidths:

LH Model – Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Specifications

Low frequency	42-65 kHz (25° to 16° beamwidth)
High frequency	130-210 kHz (10° to 6° beamwidth)
Boat Size	8 m to 12 m (25’ to 40’)
Boat type	Outboards, I/O
Hull type	Fiberglass, Wood, Metal
Hull Deadrise	Up to 28°
Acoustic Window	Urethane

What’s in the Box:

• TM265CLH-MM
• Transom Mount Hardware
• MMC-11R

Manufacturer Part Number: TM265C-LH-11R
