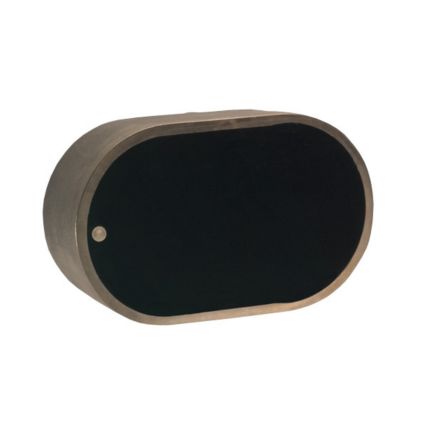

Airmar PM275C-LHW Transducer

Low High Wide CHIRP

Model: 41-694-2-01

• Ideal for marking baitfish and game fish in shallow to mid-water depths of 300ft – 600ft
• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth
• High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Boat Size: 8 m (25’) and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Get more coverage under the boat with Airmar’s new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar’s new wide beam format also creates crisper and larger return images on the display. We’ve got you covered.

Specifications

Hull deadrise	N/A
Acoustic window	Urethane
Weight	5.25 kg (11.585 lb)

Manufacturer Part Number: 41-694-2-01
