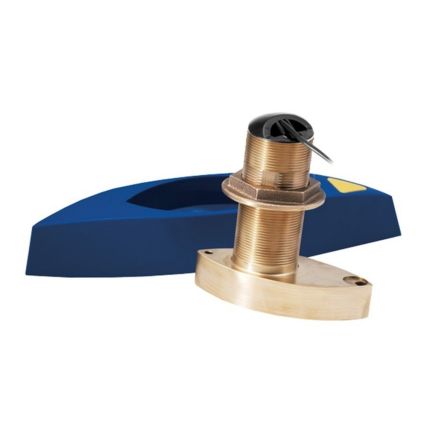

Airmar B785C Triducer Medium CHIRP with Furuno 10-Pin Mix-N-Match Cable

Model: B785C-M-10F

• Depth & fast-responDepth and fast-response water-temperature sensing
• 600 W of power
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Maximum depth of 274 m (900′)
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Recommended for use on planing or displacement hull
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900′) along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length	9 m (30ft)
Acoustic Window	Urethane
Connector	Airmar 12-Pin (MMC)
Deadrise Range	Up to 24° with fairing
Display Connector	Furuno 10-Pin
Frequency Band	Medium 80-130 kHz
Hole Size	51 mm (2in)
Housing Material	Bronze
Max Depth	274 m (900ft)
Medium Frequency Beamwidth	24°-16°
Power Rating	600 W
Single or Dual Frequency	CHIRP-Ready Single-Band
Usable Shaft Length	121 mm (4.75″)

What’s in the Box:

• B785C-M-MM Triducer
• Fairing Block
• Anti-rotation Bolt
• MMC-10F cable

Manufacturer Part Number: B785C-M-10F
